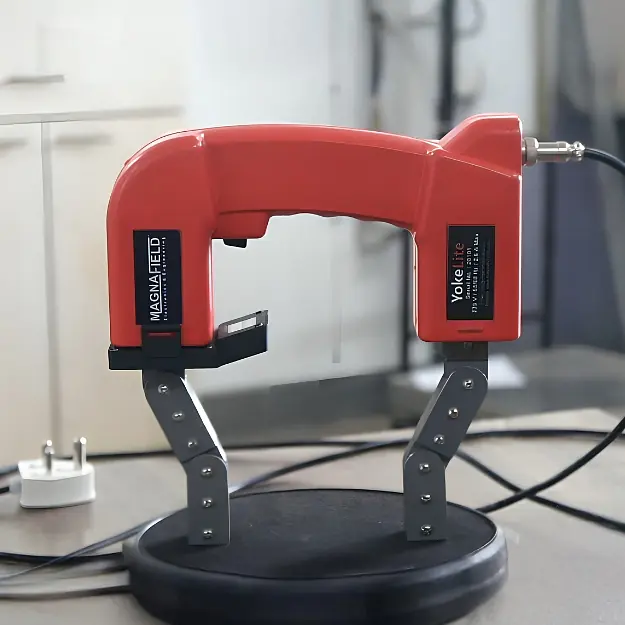

The YokeLite is an advanced AC magnetic yoke equipped with both a wireless, removable UV LED light attachment and a white light attachment, providing an all-in-one solution for magnetic particle inspections. This innovation eliminates the need for separate UV or white torches and lamps, streamlining the inspection process. The removable lights add flexibility, allowing operators to easily detach and reattach them as needed, reducing equipment clutter and enhancing portability. With both UV and white lighting integrated into the yoke, the YokeLite improves inspection efficiency, convenience, and productivity, all while delivering high-quality results.

Product Features:

• Flexible voltage options: Choose between 220V or 110V single-phase, based on your needs.

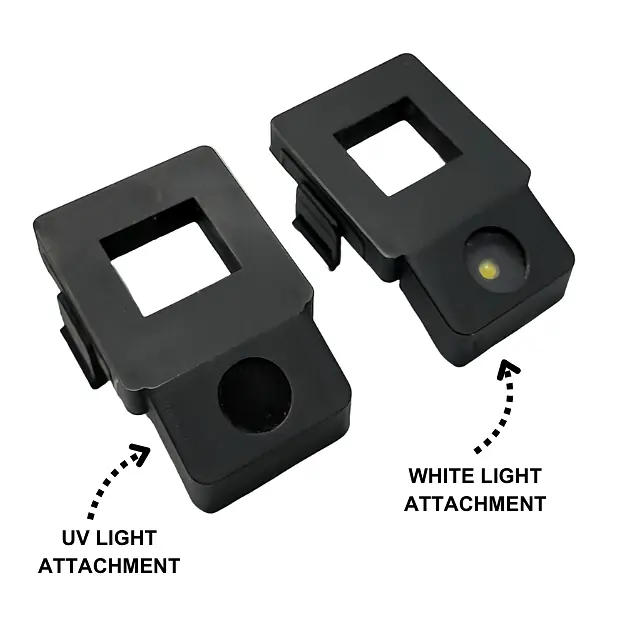

• Dual light functionality: Effortlessly switch between UV light for inspection and white light for general illumination with separate attachments.
• Wireless convenience: Both UV and white light attachments are wireless, allowing for quick setup and removal, saving time in field and workshop environments.
• Portable design: The yoke weighs less than 2.5 kg, and the attachment is under 100 grams, ensuring easy portability and handling.
• Intense illumination: Offers around 2500 microwatt per cm² UV intensity and more than 2500 lux of white light intensity for clear, efficient inspections.
• AC-powered yoke: Specifically designed for effective surface flaw detection, making it a reliable tool for inspection tasks.
• Strong magnetization: Capable of lifting up to 5 kg to provide strong magnetic hold during inspections.
• Built for durability: Constructed with a robust body to withstand demanding working environments.
